Telemetry, Tracking, and Command（TT&C）

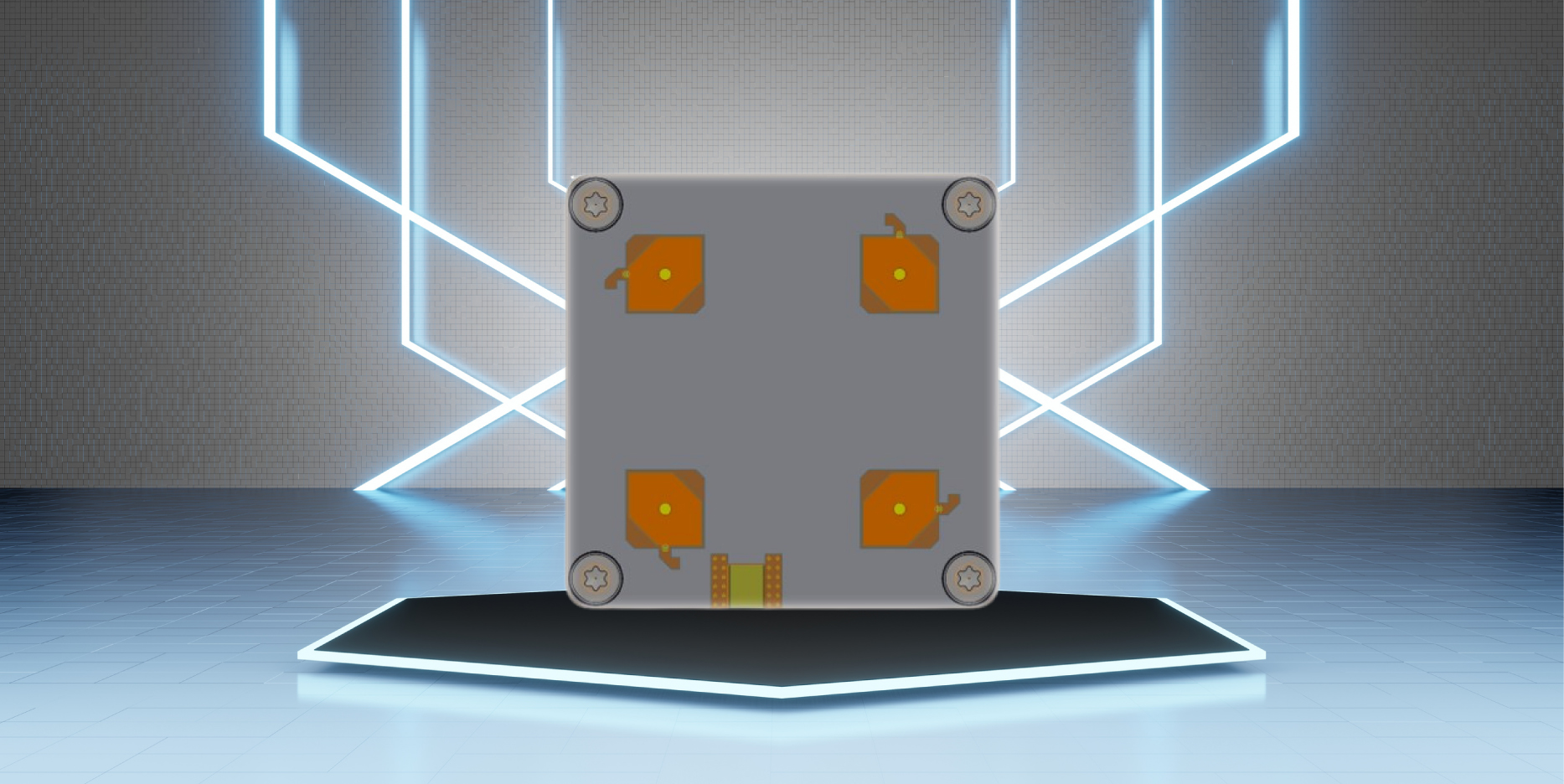

X-Band 2 x 2 Patch Antenna Array
-
Frequency Band : 8.025-8.4GHz
-
Peak Gain : 12.4±0.4dBic
-
Polarization : Right-Handed Circular (RHCP)
-
Power Handling : 5W CW Typ.
-
Dimensions: 50mm(W) x 50mm(L) x 5.2mm(H), Excl. Connector

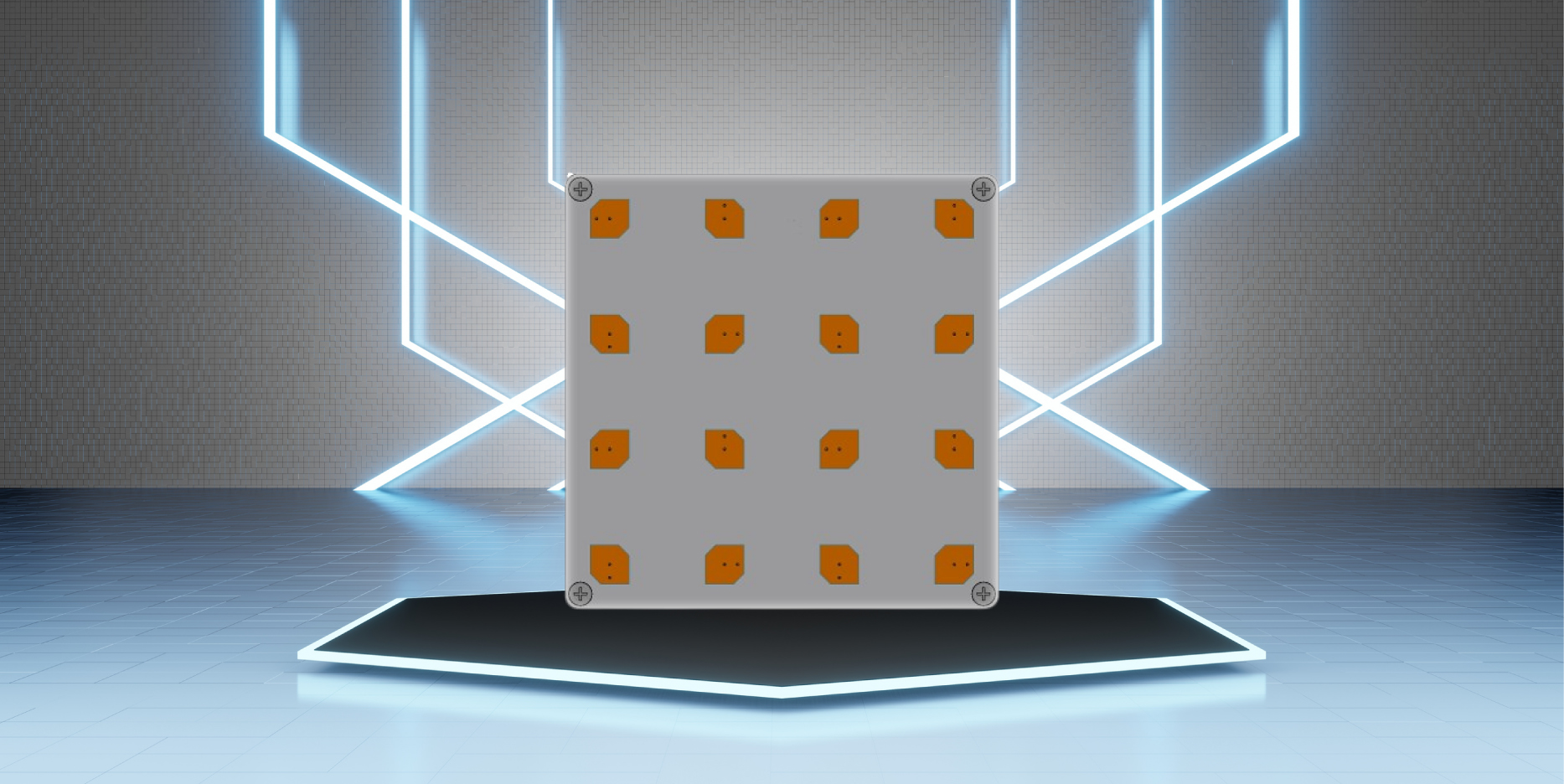

X-Band 4 x 4 Patch Antenna Array
-
Frequency Band : 8025-8400MHz
-
Peak Gain : 16.1±0.4dBic
-
Polarization : Right-Handed Circular (RHCP)
-
Power Handling : 5W CW Typ.
-
Dimensions: 100mm x 100mm x 2.7mm, Excl. Connector

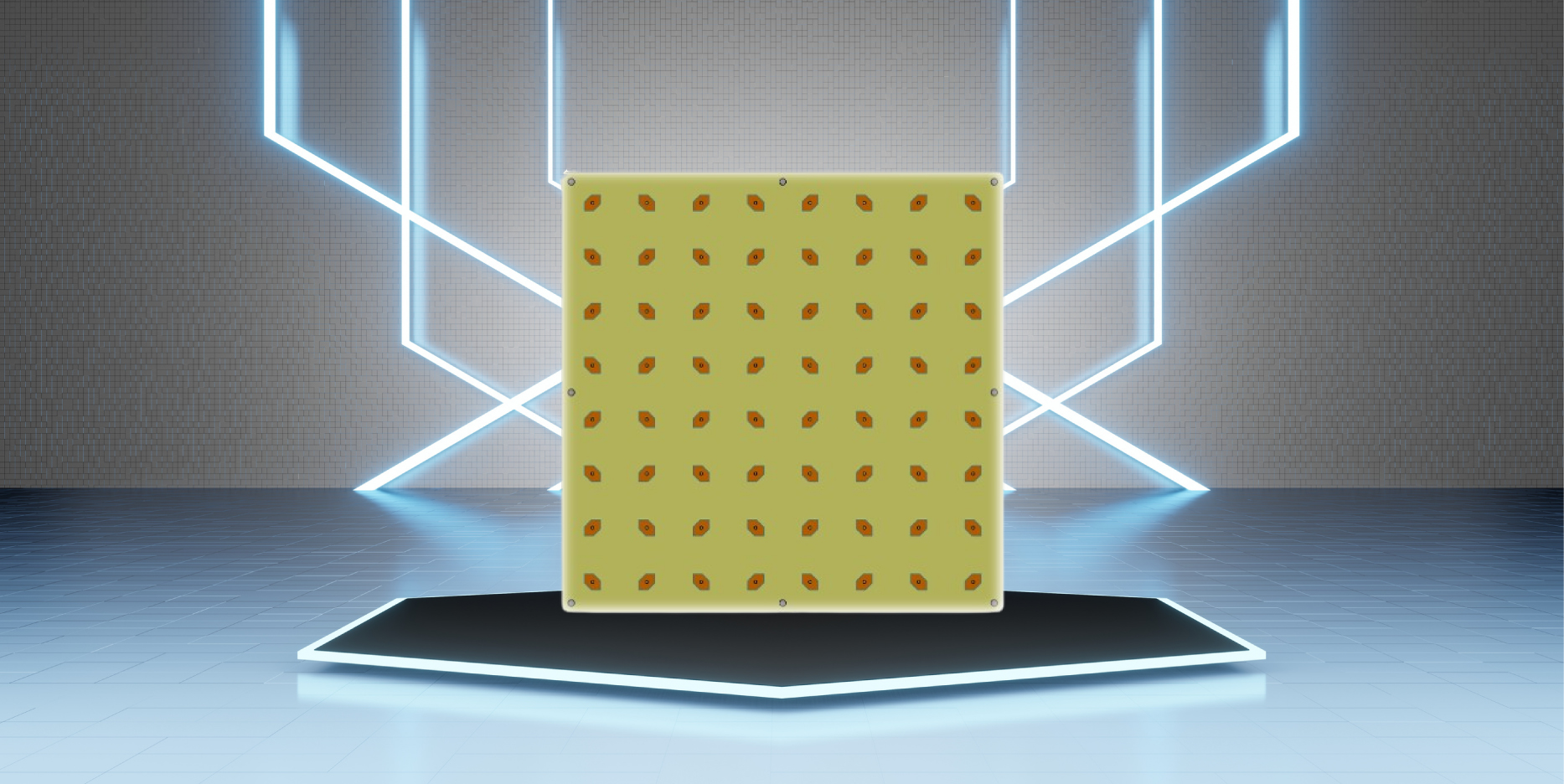

Ka-Band 8 x 8 Patch Antenna Array
-
Frequency Band : 8025-8400MHz
-
Peak Gain : 23.5±0.5dBic
-
Polarization : Right-Handed Circular (RHCP)
-
Power Handling : 5W CW Typ.
-
Dimensions: 220mm (W) x 220mm (L) x 5.2mm (H), excl. Connector

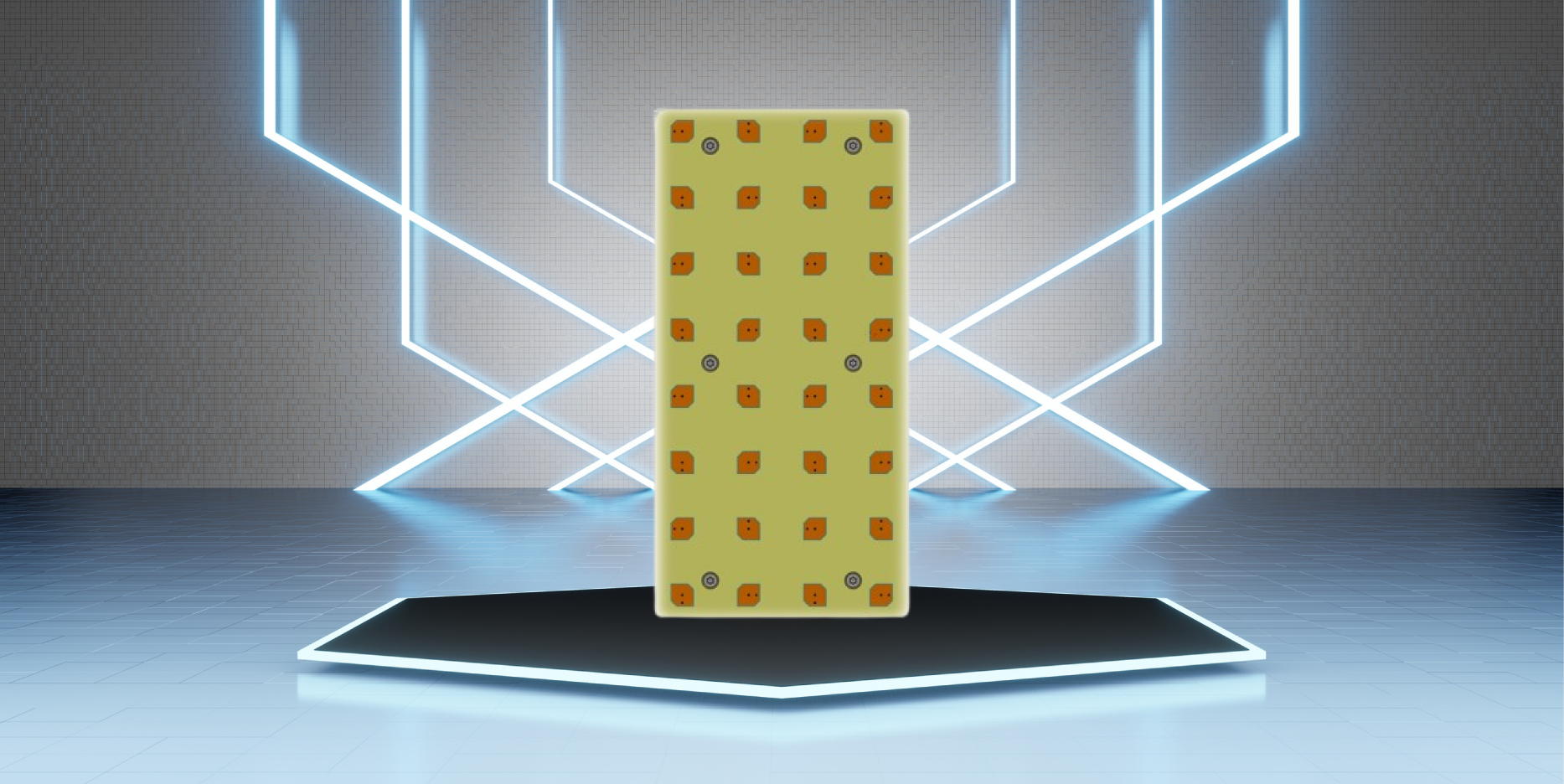

X-Band 4 x 8 Patch Antenna Array
-
Frequency Band : 8025-8400MHz
-
Peak Gain : 19.2±0.3dBic
-
Polarization : Right-Handed Circular (RHCP)
-
Power Handling : 5W CW Typ.
-
Dimensions: 100mm x 200mm x 2.7mm, Excl. Connector
